High-Efficiency Deep Groove Ball Bearings

Designed for Industrial Applications | Custom Solutions Available

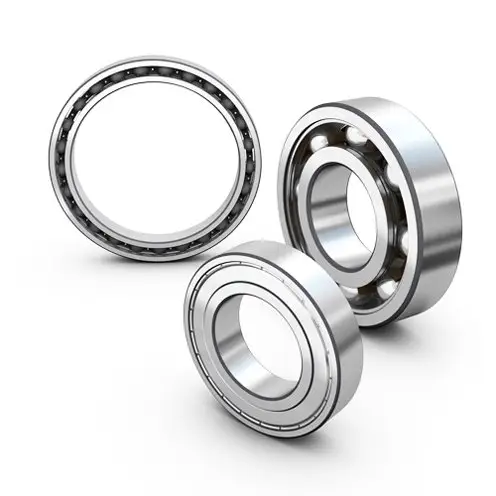

What is Deep Groove Ball Bearing？

A deep groove ball bearing, which is quite common and is used in many mechanical devices, is composed of an inner ring, outer ring, steel balls (the rolling elements), and a cage. The term “deep groove” refers to the deep channel, or groove, between the inner and outer rings. The deeper space accommodates more of the rolling elements inside the groove which enhances the ability of the bearing to carry a load.

Features of Deep Groove Ball Bearings:

High Load Carrying Capacity: Because of its deep groove design, the bearing can bear larger radial load and part of the axial load making it suitable for most general mechanical equipment.

Low Friction: These designs usually work with lower friction. That makes them work really smooth and really well.

Wide Application Range: It is widely used in industries such as automotive, home appliances, precision instruments, and industrial machinery.

Smooth Operation, Low Noise: Small separations between the rolling balls make them operate smoothly and very little induces noise.

Technical specifications and parameters

Load capacity: various parameters such as standard load, rated dynamic load, rated static load, etc.
Material: High quality bearing steel, stainless steel, ceramics, plastics, etc.
Accuracy level: P0 (ordinary level), P6 (intermediate level), P5 (high precision), P4 (ultra-high precision), etc.
Sealing methods: open type, RS type, 2RS type, Z type and other options.

Model	Size			RATED LOAD		Balls number	Model	Size			RATED LOAD		Balls number	Model	Size			RATED LOAD		Balls number
Model	d(mm)	D(mm)	B(mm)	C(KN)	C(KN)	Balls number	Model	d(mm)	D(mm)	B(mm)	C(KN)	C(KN)	Balls number	Model	d(mm)	D(mm)	B(mm)	C(KN)	C(KN)	Balls number
604	4	12	4	0.760	0.320	8	6806	30	42	7	3.190	4.000	19	R8-7	11.113	28.575	6.350	3.912	2.245	8
605	5	14	5	0.890	0.330	8	6807	35	47	7	3.760	4.270	22	R10	15.875	34.925	7.140	5.600	2.910	9
606	6	17	6	2.630	0.920	6	6808	40	52	7	4.150	4.410	24	R12	19.050	41.275	7.940	7.246	4.445	9
608	8	22	7	3.470	1.440	7	6813	65	85	10	12.130	12.960	21	R14	22.225	47.625	9.525	9.625	6.889	/
609	9	24	7	3.470	1.420	7	6814	70	90	10	13.190	13.530	23	62200	10	30	14	5.07	2.36	8
6000	10	26	8	4.850	2.190	7	697	7	17	5	1.791	0.849	9	62207	35	72	23	25.50	15.30	8
6002	15	32	9	5.590	2.840	9	698	8	19	6	2.759	1.113	7	62208	40	80	23	30.70	19.00	9
6003	17	35	10	6.000	3.240	10	6901	12	24	6	3.602	1.830	9	62213	65	120	31	55.90	40.50	10
6004	20	42	12	9.380	5.030	9	6904	20	37	9	6.370	3.680	11	62214	70	125	31	90.50	45.00	11
623	3	10	4	0.381	0.254	7	6905	25	42	9	7.010	4.550	13	62300	10	35	17	7.65	3.47	7
625	5	16	5	2.093	0.806	6	6911	55	80	13	15.970	13.270	16	62306	30	72	27	28.10	16.00	8
626	6	19	6	2.759	1.113	7	16001	12	28	7	5.300	2.427	10	62307	35	80	31	33.20	19.00	8
6207	35	72	17	27.060	15.330	9	16004	20	42	8	6.350	3.740	11	62312	60	130	46	81.90	52.00	8
6209	45	85	19	29.360	19.190	10	16005	25	47	8	6.960	4.590	13	62314	70	150	51	104.00	68.00	8
6222	106	200	38	151	118	10	16012	60	95	11	19.960	17.490	17	1602	6.35	17.463	6.35	1.610	0.720	9
635	5	19	6	1.113	2.759	7	6700	10	15	3	0.870	0.490	11	99502H	15.875	34.925	11	7.750	3.600	8
636	6	22	7	1.370	2.550	7	6701	12	18	4	1.070	0.560	13	6203/5/8	15.875	40	12	9.600	4.600	8
638	8	28	9	2.195	4.851	7	6702	15	21	4	1.150	0.790	14	63/22	22	56	16	18.510	9.360	7
6308	40	90	23	24.010	40.760	8	6705	25	32	7	1.090	0.840	21	63/22A	22	56	15	18.510	9.360	7
6313	65	140	33	59.870	92.740	8	MR106	6	10	3	0.455	0.191	10	B14-42	14	42	13	11.900	5.450	7
6320	100	215	47	140.000	174.000	8	L1480	8	14	4	1.154	0.503	10	402082	30	72	19	28.100	16.000	8
686	6	13	3.5	0.521	1.169	8	R3	4.763	12.700	3.970	1.307	0.488	6	MS12	31.75	79.247	22.225	25.500	17.580	7
6800	10	19	5	0.740	1.642	10	R3A	4.763	12.700	4.980	1.310	0.490	6	88511	55	100	31	39.070	26.540	10

Bearing Applications

Deep groove ball bearings, as well as the advantages of simple structure, low-cost manufacturing, convenient maintenance, it is also suitable for high-speed running, no noise or low noise, high precision mechanical operation, it is one of the more commonly used bearings. It is used in various industrial fields such as household appliances, automobiles and industrial equipment.

Combine Harvester

Crane

Bulldozer

Loader

Graders

Automobile

Truck

Tractor

Dump Truck

Excavator

Technical Support & After-Sales Service

Technical Support

We provide extensive technical support to make sure you never have any problems using our products and everything is done in a timely fashion.

Help With Your Choice: Don’t know which one to pick? Our technical guys can help you get the bearing you need based on the requirements you give us (load, speed, temperatures, etc.).
How to Install: We provide you with excellent installation documents and video instructions on how to install your bearings.
Troubleshooting: If you’ve got a problem like noise, vibration, or something overheating, I share with you what’s causing the issue and how to fix it like a pro.
Support: Again, any kind of technical questions, you can reach out to us through Live Chat, email, or by phone and we’ll make sure that we get you the help quickly.

After-Sales Service

We’re super committed to after-sale support big-time, so you don’t have to worry about what’s going to happen after you give us your money.

Quality Warranty: Our products come with a 6-month quality warranty. If any of the product has quality problems unartificially, we will replace it for you. We will guarantee the quality of the products we sell to you for 6 months use.
Return & Exchange Policy: If you receive a product with a quality issue, please contact our customer service within seven days, and we will arrange a return or exchange.
Repair Services: We offer global repair support. Please send the item to us, and if it’s broken, we will process the repair and get it back to you as quickly as possible.
Fast Response: MYWAY guarantees we will acknowledge your request within 24 hours of you making an after-sale service request. And we will do our best to have your issue resolved within 48 hours.

Frequently Asked Questions (FAQ)

1. What types of deep groove ball bearings are available?

You could get single-row or double-row deep groove ball bearings. Single-rows are used when the load is just in a single direction, under an indent. Double- rows are used when speed, or vibration is higher or when loads are higher in radial or when you have load on it from two different angles.

2. How do I choose the right bearing for my equipment?

Check for things like operating load, speed, temperature range, and the environment (vibration, corrosion). If you need help, let us know. Our technical team’s ready to help you, too.

3. What should I do if I encounter quality issues with the bearing I purchased?

If you end up with a bad bearing (it only happens one or two times out of a 1,000), make sure you contact our customer service within 7 days of receiving the product and we will do what we need to do under our return policy to get you a good bearing.

4. How do I clean and maintain the bearing?

Check the lubrication regularly. Don’t overload it or overheat it. If you need help with your specialized maintenance, get in touch with us.

5. What is the minimum order quantity (MOQ)?

Concrete answer to this question is 5000. “For bigger bearing (different sizes), call our sales team and we can discuss what we can do for you. We can get creative and, or, we have discounts.

6. Do you offer customization services?

Of course, we can customize. You can order them larger, a different material, or in any color. Contact our customer manager to determine the details of what you need.

7. How are shipping fees calculated?

Your shipping cost depends on how much you order (volume), where you are, and what type of shipping you need. You can use airfreight or sea freight. You confirm the cost with us before you place your order.

8. What is your delivery lead time?

Our stand deliver time is 7-20 business days after confirmation of the order. Depending on special requirements or bulk needs, the delivery time may be longer. Work out those details with the sales team.

9. What payment methods do you accept?

We can accept T/T, L/C by negotiation, PayPal, and more. We can discuss the payment terms based on the size of order and our cooperation agreement.
